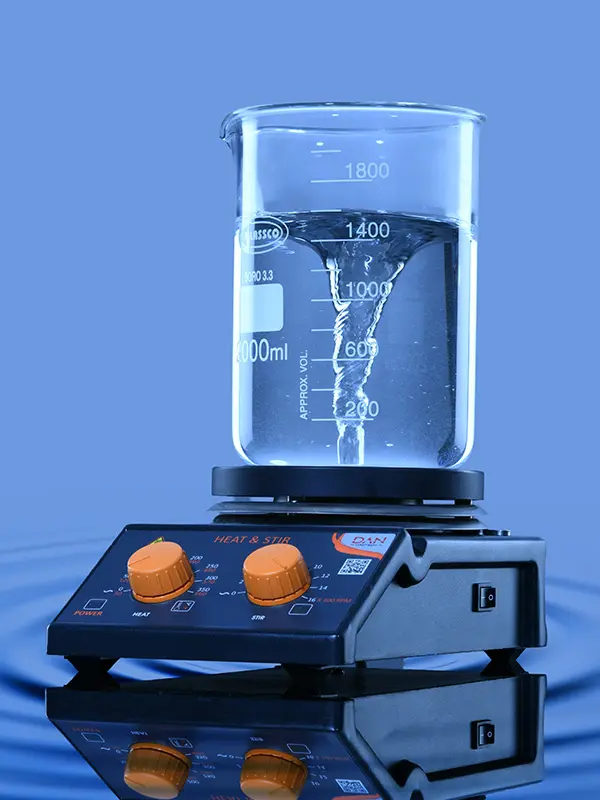

Magnetic Stirrer with Analog Hotplate, Stainless Steel Top

STAINLESS STEEL TOP Magnetic Stirrer with Hotplate – Analog
Aluminium Moulded Construction
Easy temperature & Stir controls
Installed with Safety PT sensor for fail safe operation.
Hot top indicator for temperatures above 50°C.
Large top plate to assist beakers upto 2000 ml.
High magnetic strength.
Electronic variable speed control with Knob for display.
Knob for regulating variable temperature.
Heat reach Indicator, To ensure you correct temperature of plate surface.
Stirring & temperature indicator
Error indicators for heat & Stir function inbuilt trouble shoot
Hot top warning indicator for temperature >50°C

Technical Specifications
Heating Mantle Material : Steel/Ceramic Coated
Dimension of heating plate : 150 Ø
Speed Range : 50-1700 RPM
Maximum stirring bar length : Can use upto 80mm bar
(at lower speed)
Temperature Range : Ambient to 350°C approx
Dimensions of hot plate body : 273x160x102mm
Weight of body : 2.8 kgs
Permissible Ambient Temperature : 5- 40 °C
Permissible relative moisture : 80%
IP Class : 22

Model No. V Hz W Top Plate Enquiry
700.AG.0123050650 Stainless Steel
