Name: Advanced 3-in-1 Nitrogen Analysis System
SKU: 131002
Availability: InStock

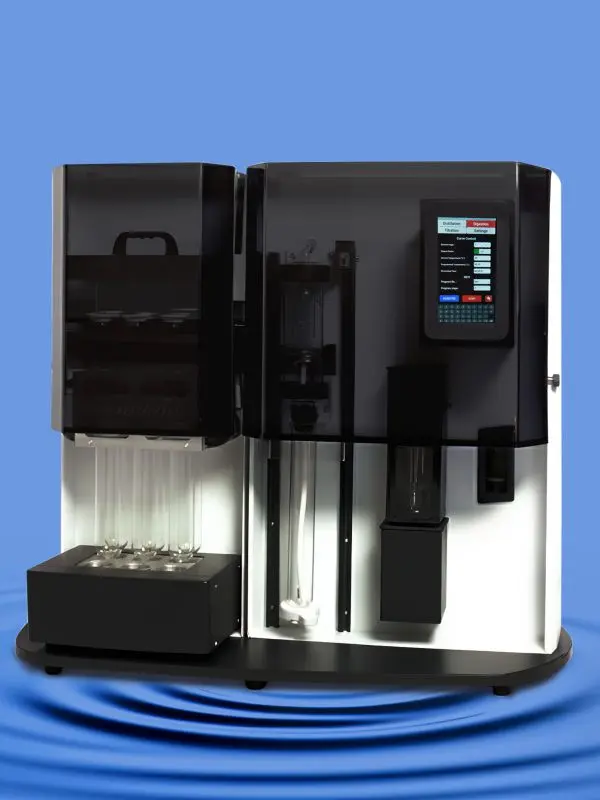

Advanced 3-in-1 Nitrogen Analysis System

₹100,000.00

INTEGRATED WORK STATION FOR NITROGEN ESTIMATION

Advanced 3-in-1 Nitrogen Analysis System integrating Digestion, Distillation, and Auto Titration in one compact platform.
7-Inch Capacitive Full-HD Touch Display with a modern GUI interface for seamless control and real-time process monitoring.
Independent Digestion Operation that runs without any requirement from distillation or titration systems.
Distillation & Titration – Selectable but Dependent: Both can operate individually; titration requires distillation output; ensures accurate Distillation → Titration sequence.
Parallel Workflow Capability allowing digestion to run independently while distillation and titration proceed automatically in order.
Semi-Automatic Reagent Handling with automatic suction and feeding of reagents during operation.
Inbuilt Scrubber: Absorbs digestion fumes for safer, cleaner operation.
Separate Containers for All Reagents: Diluent, Alkaline Solution, Boric Acid, Titrant, and Titration Color/Indicator.
Large-Capacity Reagent Bottles for extended operation with minimal refilling frequency.
Auto Scrubber Water Drain & Refill after every digestion cycle for consistent performance and reduced manual work.
Auto Steam Generator Refill with proximity-based water level sensing for safe and uninterrupted distillation.
High-Efficiency Steam Generation for faster recovery, consistent distillation output, and reduced energy usage.
Precision Auto Titration System with accurate endpoint detection and stable titrant dispensing for repeatable results.
Chemical-Resistant Tubing & Components designed for long-life operation even in harsh laboratory environments.
Low Maintenance Design with easy-to-access service areas and tool-less assembly for cleaning and tubing replacement.
Smart Error Detection with alarms for low water, low reagents, temperature faults, and system abnormalities.
Over-Voltage, Over-Temperature & Dry-Run Protection ensuring operational safety.
High-Temperature Resistant Digestion Block for uniform heating and long-term durability.
Energy-Optimized System for reduced power consumption without compromising performance.
Flexible Operation Modes:
- Digestion Only
- Distillation Only
- Titration Only (after distillation)
- Distillation + Titration Combined
- Full Cycle (Digestion → Distillation → Titration)
Designed for Heavy-Duty Laboratory Use with reliability suited for routine daily nitrogen analysis.
Compact & Modular Architecture that fits easily in modern lab setups and simplifies servicing.
Multiple Program Storage: Supports saving multiple digestion, distillation, and titration programs internally.
USB Backup & Restore: Users can export (download) all programs to a USB drive and import (load) programs from USB for quick setup, sharing, or recovery.
Remote Monitoring & Control: Optional Labs Connect module enables secure internet-based access to start/stop operations, view live status, check errors, and monitor digestion/distillation/titration progress remotely.
Multiple Program Storage: Supports saving multiple digestion, distillation, and titration programs internally.
USB Backup & Restore: Users can export (download) all programs to a USB drive and import (load) programs from USB for quick setup, sharing, or recovery.
Remote Monitoring & Control: Optional Labs Connect module enables secure internet-based access to start/stop operations, view live status, check errors, and monitor digestion/distillation/titration progress remotely.

Specifications:

Digestion

Capacity: 6 tubes
Compatible Tube Sizes: 42 mm OD, 300 mL Kjeldahl tubes
Temperature Range: Ambient to 450 °C
Temperature Accuracy: ±1 °C
Heating Module Material: Aluminium alloy high-temperature block
Temperature Control: PID-based point and curve control
Construction: High-temperature digestion block with chemical-resistant pathways
Auto Scrubber: Automatic drain and refill after each digestion cycle

Distillation

Analysis Scope: 0.1 – 240 mg N
Precision (RSD): ≤ 0.5%
Recovery: 99 – 101%
Steam Generator: High-efficiency design with automatic water refill
Cooling System: High-efficiency condenser
Cooling Water Consumption: 1.2 – 3.0 L/min
Safety Features: Over-temperature and dry-run protection

Titration

Type: Automatic acid–base titration
Accuracy: ±0.1%
Endpoint Detection: Colorimetric
Dispensing Mechanism: High-precision piston-based titrant delivery system
Dispense Resolution: 0.01 mL
Repeatability: High stability due to closed piston chamber and micro-step motor control
