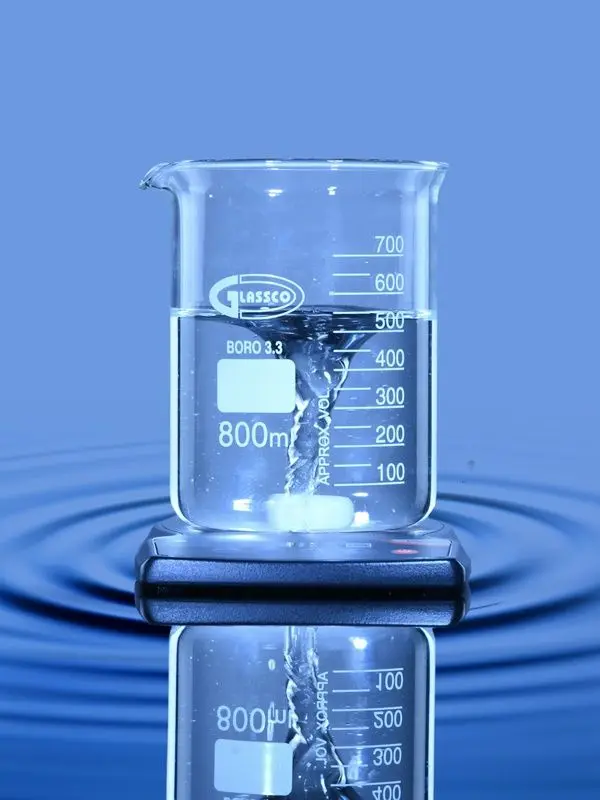

Digital Flat Stirrer

Introduction

A Digital Flat Stirrer is a laboratory instrument used to mix the liquids in a Glass Container with the help of a magnetic field generated electronically using a magnetic coil. It is lightweight and easy to operate. It has a shockproof body. Due to the absence of internal moving parts, it is less noisy and highly durable.
Significant Features
  • Ultra Flat and Compact
  • Induction-based Operation
  • Vibration Free
  • Ultra Silent
  • Slip Proof
  • Chemical Resistant
  • Quick, Safe, and Easy to Use

  • This instrument is CE Certified.
  • This instrument is compact and has great stability.
  • It has 7 Stirring Modes for your choice of better mixing.
  • DAN Logitech’s Digital Flat Stirrer is splash proof.
  • It is built with Modern Magnetic Coil Technology.
  • The setup plate is made up of chemically resistant polyester material with a diameter of 100 mm.
  • With Digital Display, one can set the time and speed in DAN’s Digital Flat Stirrer.
Technical Specification
  • IP Class 65
  • Speed - 10 RPM to 1500 RPM
  • Voltage - 100 V to 240 V
  • Hertz - 50/60 Hz
  • Motor Rating Output - 3 W
  • Weight - 0.3 kg
  • Maximum Stirring Bar Length - 25 mm X 8 mm
  • Permissible Relative Humidity - 80%
  • Permissible Ambient Temperature - 5 to 40 degrees Celsius.
  • Power Input - 6 W
  • Timer Setup - 00:01 Second to 99:59 Hours
  • Maximum Stir Quantity (H2O) - 800 ml (per stirring position)
Glassware compatible with DAN Logitech’s Digital Flat Stirrer
Storage and Use  The compact and flat design of the Digital Flat Stirrer makes it convenient to easily store in cupboards and small cabinets. One can store this instrument in cold rooms and CO2 free incubators.
KEY FACTS
  • 7 - Mode Choice
           Clockwise, Anti-clockwise, T 30, T 60, T 90 , T 120, T 240
  • To deliver an excellent mixing performance, this flat stirrer can carry out automatic reverse rotations.
Carry me and put me anywhere, anytime.

Also Known as : 430.DG.01
