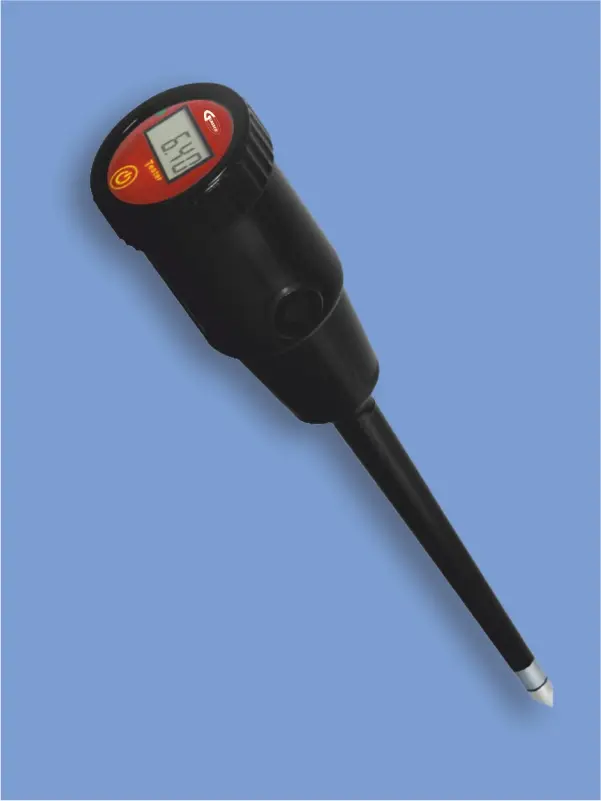

The tester features with innovative nanotechnology metal material sensor, for fast and easy test of pH value of soil, fruit, meat, cheese and other semi-solid media.
Operating Instruction
- Take off the protective cap from metal probe
- Press OFF/ON button. Tester displays “7.00”.
- Insert the metal probe vertically into the sample that requires testing, at least 6-8cm deep. Make sure there is close contact(Soil need to humid~60%-80%). The tester will start testing automatically. After about 1 minute the test is over. Indication light will be on for about 10 seconds. The displayed number is locked, which is the value of pH.
- After each test, take out the tester, wipe the metal probe clean with towel or tissue paper. Display will be unlocked, and show “7.00″. It is ready for a newtest.
- After use, wipe the metal probe clean until it displays “7.00”. Switch off the tester.
Technical Specification :
| Range | : pH: 3.0-14.0 pH |
| Resolution | : 0.10 pH |
| Accuracy | : ± 0.2 pH(3.0-12.0 pH ) |
| Operating Temp | : 5-45 °C |
| Calibration | : 1 point (Factory calibrated -No more calibration) |
| Power supply | : DC 9V(L1022 battery) |
| Display | : LCD |
| Dimension | : Æ50.5 x 250 mm |
| Probe length | : 140mm |
| Features | : Automatic detection of data and lock to keep,automatic switch to OFF in 5 minutes (or manual shutdown). |
| Weight | : 110 Gms (Approx) |
| IP Class | : 64 |
