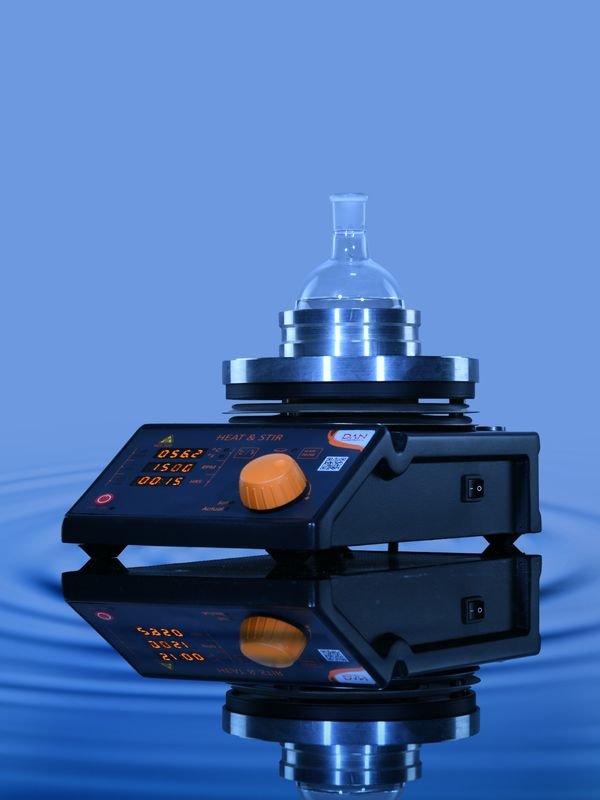

Alluminium Alloy Ceramic Coated Top
- Aluminium Moulded Construction
- Ceramic coated plate alloy, chemically resistant
- Chemically resistant keypad
- Even heat distribution at faster rate.
- Thermal insulation for cool body operation.
- Digital set up temperature controller with independent LED display.
- Set safety cut-off for maximum temperature limit for top plate or probe.
- Installed with double PT sensors for fail safe operating mechanism.
- Hot top indicator for temperature above 50°C even when switched off.
- Inclusive PT 100 temperature sensors probe.
- Audible alarm at time cycle end for safety and ease of unsupervised operation.
- Top plate Ø 145 mm to assist beaker upto 2000 ml & Adapter.
- Compatible for use with all major brands top assemblies 1 Cavity, 3 Cavities or Multiple Cavities.
- Digital setup of time with independent LED display.
- Selection of plate and probe temperature.
- Error code display at failures
- Digital setup of RPM with independent LED diplay.
- Count-up indication of minutes and hours.
- Single multi-turn intelligent knob Operation.
- Selection of Celsius and Fahrenheit.
- High magnetic strength.
Technical Specification:
| Heang Mantle Material | : Alluminium Alloy with ceramic coating |
| Dimension of heating plate | : Ø145mm |
| Three display windows for | : Temperature, RPM and time |
| Speed range | : 50-1500 RPM |
| Maximum srring bar Length | : Can use upto 80 mm bar (at lower speed) |
| Temperature Range | : Ambient to 350°C approx |
| Adjustable safety cut off | : 50-400°C |
| Control accuracy of PT100 | : ± 1K |
| Dimensions of hot plate body | : 273x160x102mm |
| Weight of body | : 3.3 kgs |
| Permissible ambient Temperature | : 5- 40 °C |
| Permissible relave moisture | : 80% |
| RS 232 interface | : Yes (for programming) |
| IP Class | : 32 |
| Also Known as | : 610.DG.01, 610.DG.02 |
Included Accessory:
| Cat. No. | Accessories |
|---|---|
| 850.800.01 | Rod Stainless Steel length 400 mm, Ø 12 mm |
| 850.800.02 | Magnetic Stirring bar 35 mm x 9 mm |
| 850.800.03 | Moulded PT 100 sensor probe |
| 850.800.04 | Boss Head |
Optional Accessory:
| Cat. No. | Accessory (Aluminum Adapter for Round Bot tom Flasks) Flask Capacity (ml) |
Places |
|---|---|---|
| 610.ADP.00 | 10ml | 8 |
| 610.ADP.01 | 25ml | 7 |
| 610.ADP.02 | 50ml | 4 |
| 610.ADP.03 | 100ml | 1 |
| Temp | RPM | Plate Size | Vessel Capacity | Plate Material |
|---|---|---|---|---|
| 350° C | 50-1500 RPM | 145mmØ | upto 2L Beakers | Aluminium Alloy Ceramic Coated |
