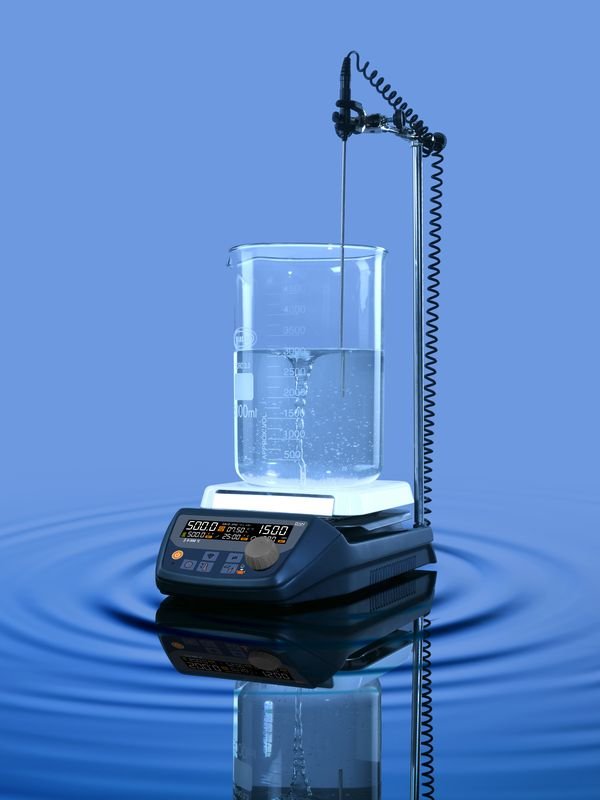

NEOCERAM™(Glass Ceramic Top)
- PU coated aluminum alloy moulded body
- Selection of hotplate or probe for temperature control
- Single multi-turn intelligent knob operation
- Hot top indicator for user safety
- Adjustable temperature limit safety cut-off for top plate & probe
- Temperature control in °C & °F
- Audible alarm at time cycle end for safety and ease of unsupervised operation
- Error code display for failures
- Count up/down option
- Continuous stirring (CS) option
- Lock option
- Controlled or rapid heating (PID/2PID) selection
- BLAC motor withstands voltage fluctuations
- User safety spill away design
Technical Specification :
Heating plate material | : | Glass Ceramic Top Plate |
Dimension of heating plate | : | 180 x 180mm |
Display windows | : | LCD WHITE |
Speed range | : | ~2000RPM |
Heat output | : | 1300W |
Heating capacity | : | 5 Ltr. |
Stirring capacity | : | 20 Ltr. |
Temperature range | : | Ambient to 550°C |
Adjustable safety cut off | : | 580°C |
Control accuracy of sensor | : | ± 1K |
Weight | : | 5.2kg |
Permissible ambient temp. | : | 5 – 40°C |
Permissible relative humidity | : | 80% |
Dimensions | : | 378 x 220 x 103mm |
Frequency | : | 50/60Hz |
Voltage | : | 230/115V |
DIN EN 60529 | : | IP 21 |
